Product parameters

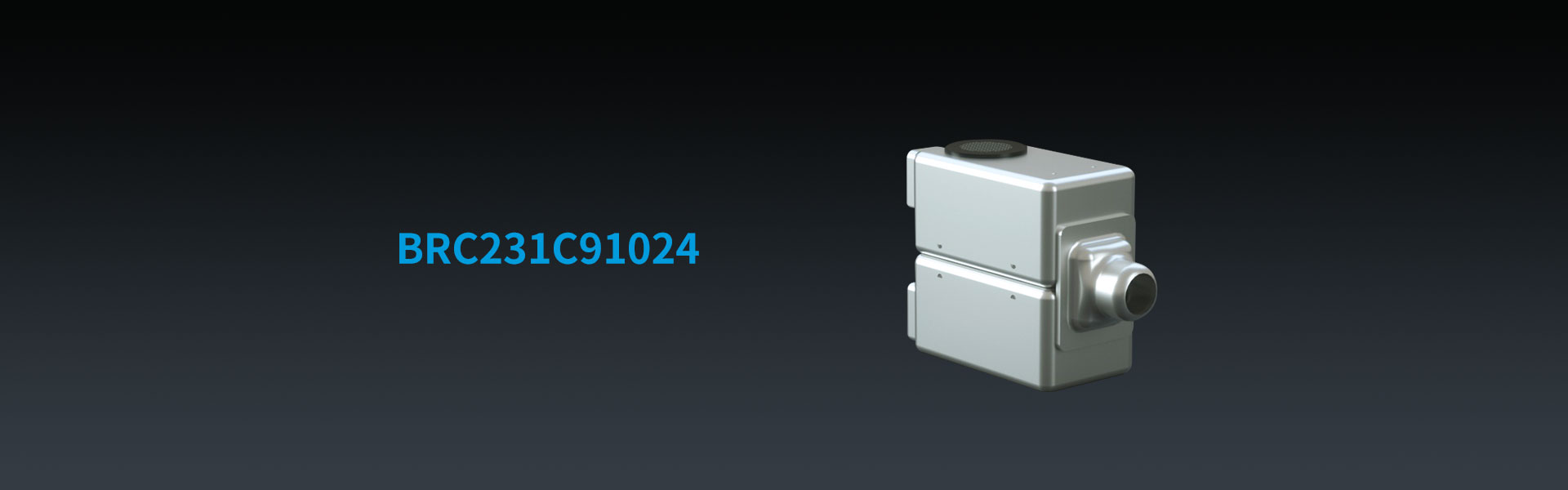

ModelBRC231C91024DCR24.0Ω
Sensitivity113.5dB@1000HzMPO @ peak119.5dB
Nominal Drive160mV RMSAcoustic Load10.0mm x 1.0mm tubing into IEC711
Port Location12SBack ventYES
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

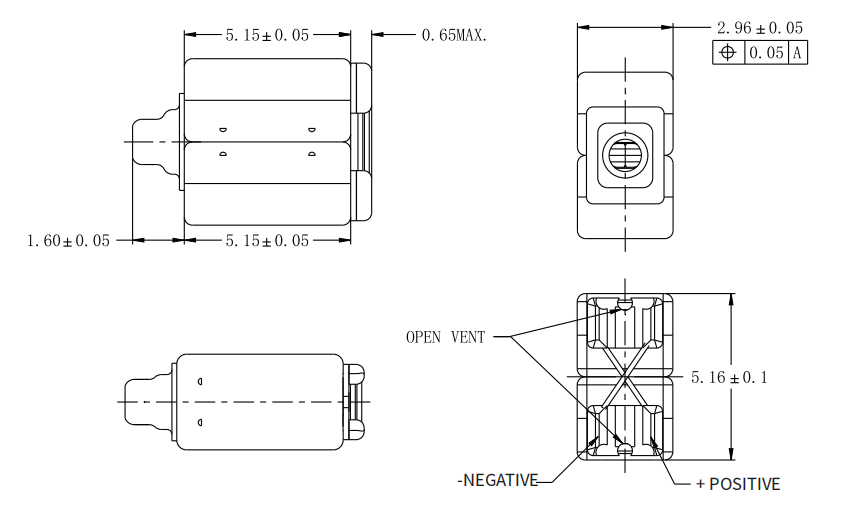

Appearance Size

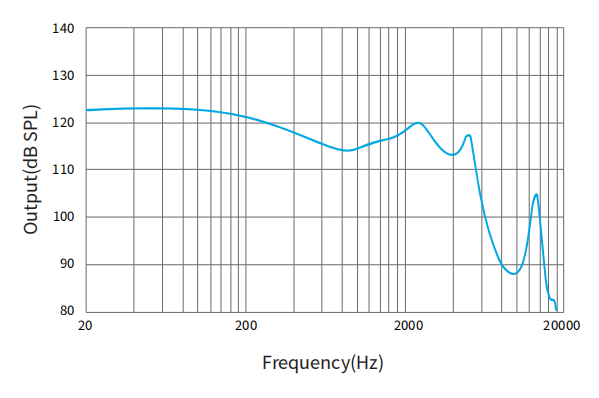

Frequency curve
