Product parameters


ModelBRC540H90027DCR25.0Ω
Sensitivity108.0dB@1000HzMPO @ peak128.0dB
Nominal Drive146mV RMSAcoustic Load10.0mm x 1.0mm tubing into IEC711
Port Location12CBack ventNO
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

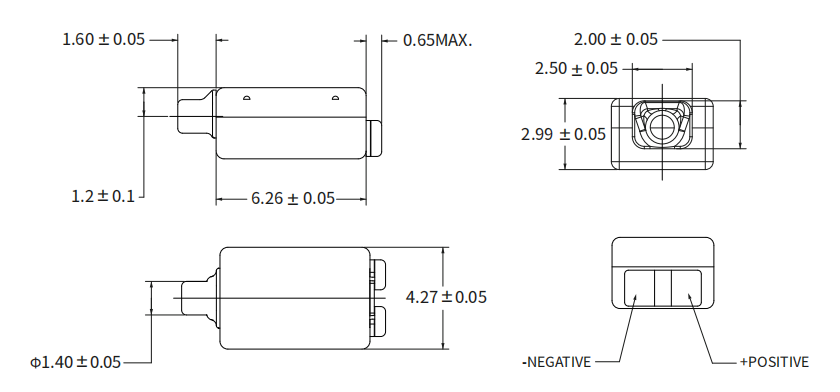

Appearance Size

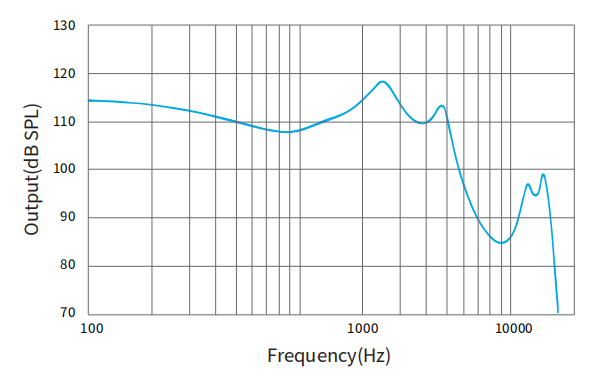

Frequency curve
